Maven 构建配置文件

构建配置文件是一系列的配置项的值,可以用来设置或者覆盖 Maven 构建默认值。

使用构建配置文件,你可以为不同的环境,比如说生产环境(Production)和开发(Development)环境,定制构建方式。

配置文件在 pom.xml 文件中使用 activeProfiles 或者 profiles 元素指定,并且可以通过各种方式触发。配置文件在构建时修改 POM,并且用来给参数设定不同的目标环境(比如说,开发(Development)、测试(Testing)和生产环境(Production)中数据库服务器的地址)。

构建配置文件的类型

构建配置文件大体上有三种类型:

类型在哪定义
项目级(Per Project)定义在项目的POM文件pom.xml中
用户级 (Per User)定义在Maven的设置xml文件中 (%USER_HOME%/.m2/settings.xml)
全局(Global)定义在 Maven 全局的设置 xml 文件中 (%M2_HOME%/conf/settings.xml)

配置文件激活

Maven的构建配置文件可以通过多种方式激活。

  • 使用命令控制台输入显式激活。

  • 通过 maven 设置。

  • 基于环境变量(用户或者系统变量)。

  • 操作系统设置(比如说,Windows系列)。

  • 文件的存在或者缺失。

配置文件激活示例

假定项目结构如下:

其中在src/main/resources文件夹下有三个用于测试文件:

文件名描述
env.properties如果未指定配置文件时默认使用的配置。
env.test.properties当测试配置文件使用时的测试配置。
env.prod.properties当生产配置文件使用时的生产配置。

注意:这三个配置文件并不是代表构建配置文件的功能,而是用于本次测试的目的;比如,我指定了构建配置文件为 prod 时,项目就使用 env.prod.properties文件。

注意:下面的实例仍然是使用 AntRun 插件,因为此插件能绑定 Maven 生命周期阶段,并通过 Ant 的标签不用编写一点代码即可输出信息、复制文件等,经此而已。其余的与本次构建配置文件无关。

1、配置文件激活

profile 可以让我们定义一系列的配置信息,然后指定其激活条件。这样我们就可以定义多个 profile,然后每个 profile 对应不同的激活条件和配置信息,从而达到不同环境使用不同配置信息的效果。

以下示例,我们将 maven-antrun-plugin:run 目标添加到测试阶段中。这样我们可以在不同的 profile 中输出文本信息。我们将使用 pom.xml 来定义不同的 profile,并在命令控制台中使用 maven 命令激活 profile。

pom.xml 文件如下:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.jsoft.test</groupId>
  <artifactId>testproject</artifactId>
  <packaging>jar</packaging>
  <version>0.1-SNAPSHOT</version>
  <name>testproject</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <profiles>
      <profile>
          <id>test</id>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.test.properties</echo>
                             <copy file="src/main/resources/env.test.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
      <profile>
          <id>normal</id>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.properties</echo>
                             <copy file="src/main/resources/env.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
      <profile>
          <id>prod</id>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.prod.properties</echo>
                             <copy file="src/main/resources/env.prod.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
   </profiles>
</project>

注意:构建配置文件采用的是 <profiles> 节点。

说明:上面新建了三个 <profiles>,其中 <id>  区分了不同的 <profiles> 执行不同的 AntRun 任务;而 AntRun 的任务可以这么理解,AntRun 监听 test 的 Maven 生命周期阶段,当 Maven 执行 test 时,就除了发 AntRun 的任务,任务里面为输出文本并复制文件到指定的位置;而至于要执行哪个 AntRun 任务,此时构建配置文件起到了传输指定的作用,比如,通过命令行参数输入指定的 <id>

执行命令:

mvn test -Ptest

提示:第一个 test 为 Maven 生命周期阶段,第 2 个 test 为构建配置文件指定的 <id> 参数,这个参数通过 -P 来传输,当然,它可以是 prod 或者 normal 这些由你定义的<id>

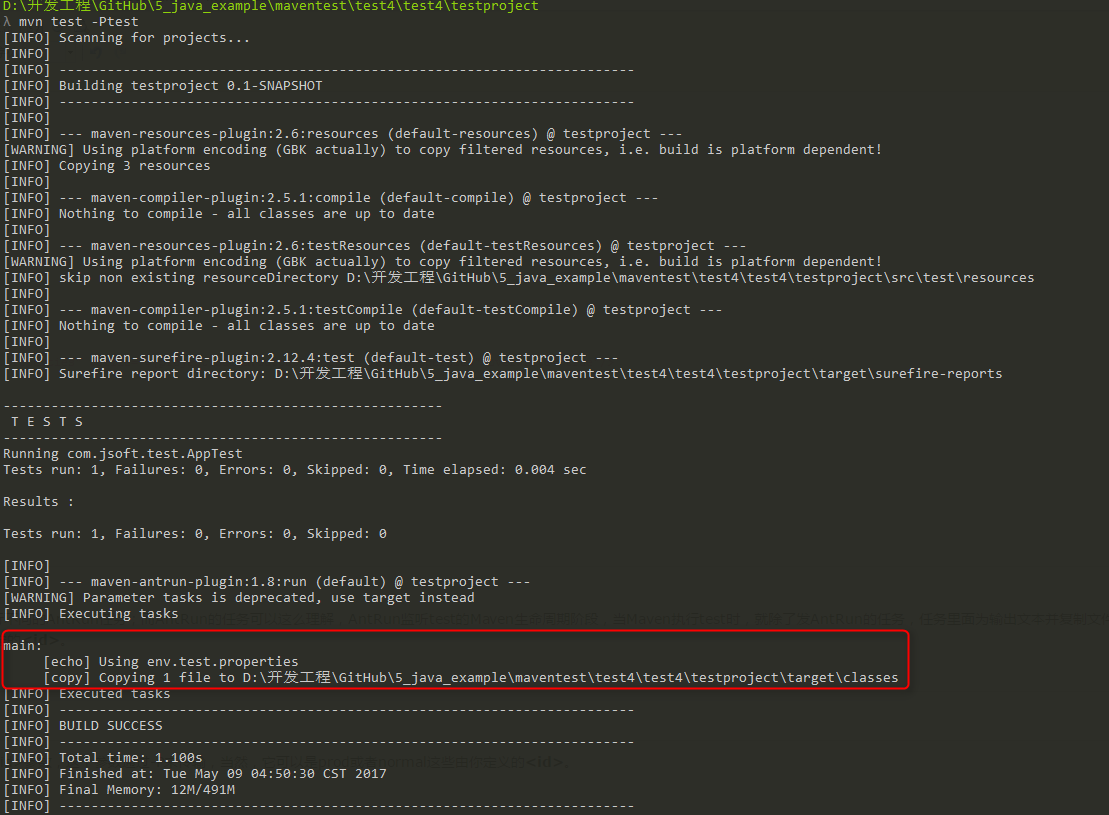

运行的结果如下:

可以看出成功的触发了AntRun的任务。并且是对应构建配置文件下的 <id> 为 test 的任务。

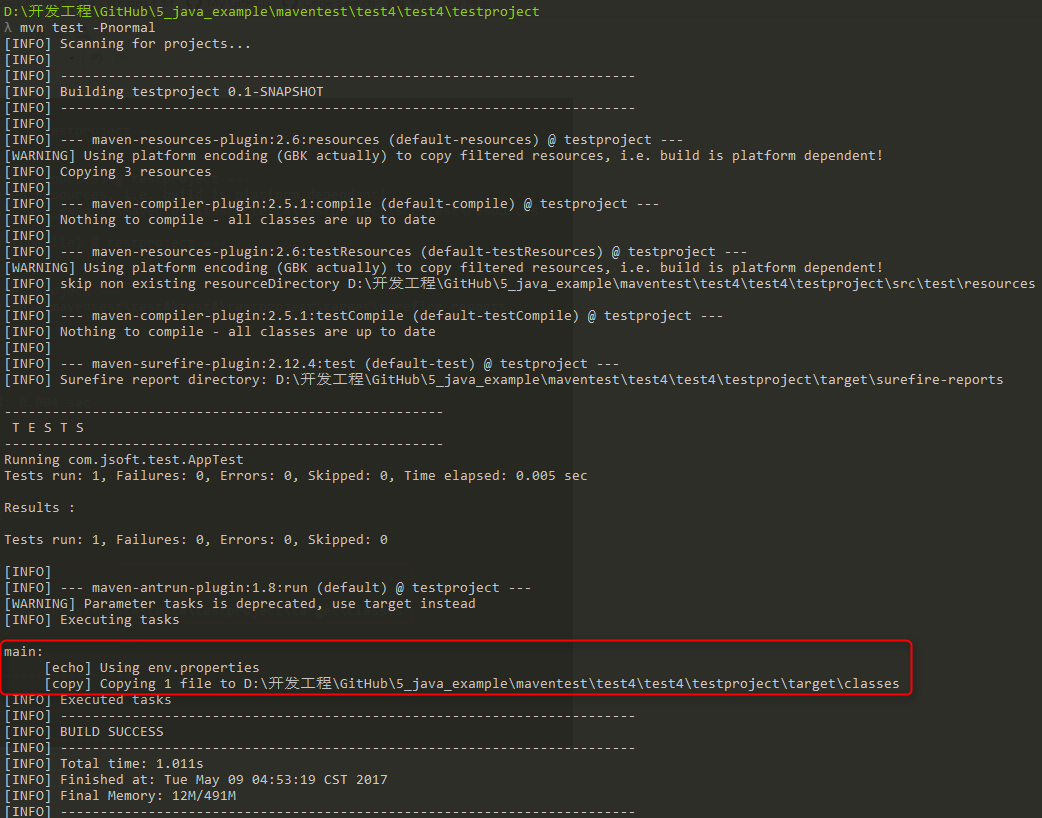

再测试其余两个命令,结果如下:

2、通过Maven设置激活配置文件

打开 %USER_HOME%/.m2 目录下的 settings.xml 文件,其中 %USER_HOME% 代表用户主目录。如果 setting.xml 文件不存在就直接拷贝 %M2_HOME%/conf/settings.xml 到 .m2 目录,其中 %M2_HOME% 代表 Maven 的安装目录。

配置 setting.xml 文件,增加 <activeProfiles>属性:

<settings xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/settings-1.0.0.xsd">
   ...
   <activeProfiles>
      <activeProfile>test</activeProfile>
   </activeProfiles>
</settings>

执行命令:

mvn test

提示 1:此时不需要使用 -Ptest 来输入参数了,上面的 setting.xml 文件的 <activeprofile> 已经指定了 test 参数代替了。

提示 2:同样可以使用在 %M2_HOME%/conf/settings.xml 的文件进行配置,效果一致。

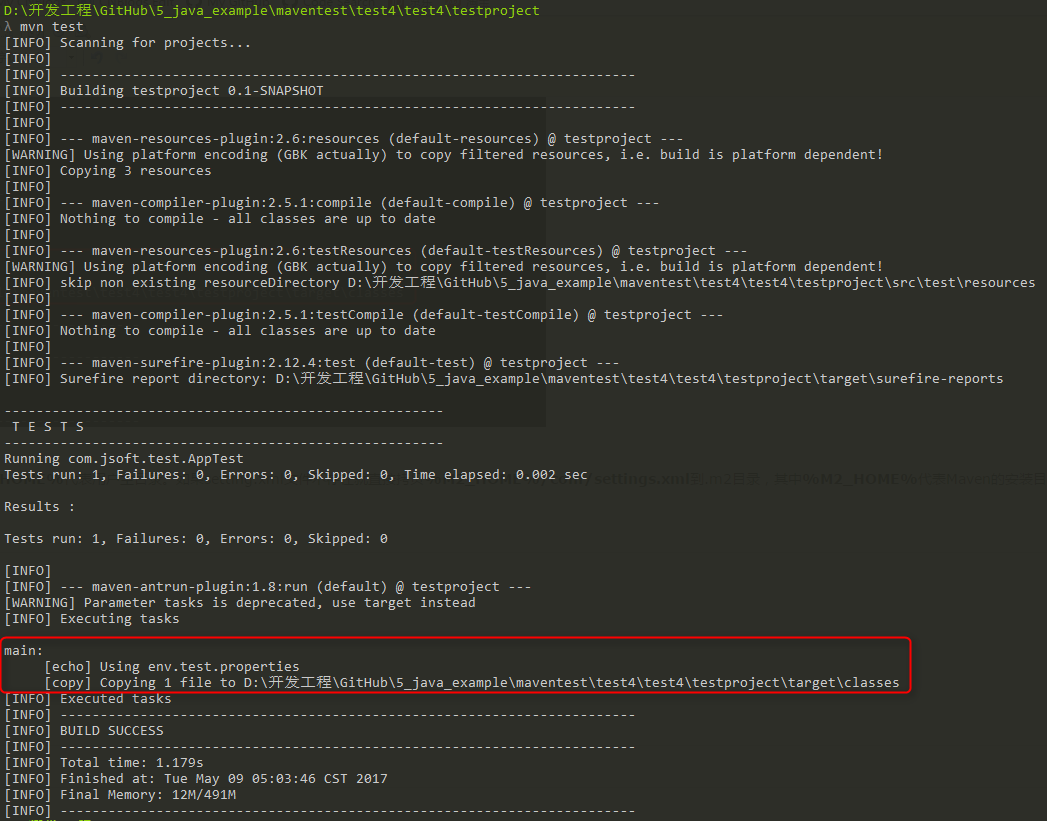

执行结果:

3、通过环境变量激活配置文件

先把上一步测试的 setting.xml 值全部去掉。

然后在 pom.xml 里面的 <id> 为 test 的 <profile> 节点,加入 <activation> 节点:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.jsoft.test</groupId>
  <artifactId>testproject</artifactId>
  <packaging>jar</packaging>
  <version>0.1-SNAPSHOT</version>
  <name>testproject</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <profiles>
      <profile>
          <id>test</id>
          <activation>
            <property>
               <name>env</name>
               <value>test</value>
            </property>
          </activation>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.test.properties</echo>
                             <copy file="src/main/resources/env.test.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
      <profile>
          <id>normal</id>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.properties</echo>
                             <copy file="src/main/resources/env.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
      <profile>
          <id>prod</id>
          <build>
              <plugins>
                 <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-antrun-plugin</artifactId>
                    <version>1.8</version>
                    <executions>
                       <execution>
                          <phase>test</phase>
                          <goals>
                             <goal>run</goal>
                          </goals>
                          <configuration>
                          <tasks>
                             <echo>Using env.prod.properties</echo>
                             <copy file="src/main/resources/env.prod.properties" tofile="${project.build.outputDirectory}/env.properties" overwrite="true"/>
                          </tasks>
                          </configuration>
                       </execution>
                    </executions>
                 </plugin>
              </plugins>
          </build>
      </profile>
   </profiles>
</project>

执行命令:

mvn test -Denv=test

提示 1:上面使用 -D 传递环境变量,其中 evn 对应刚才设置的 <name> 值,test 对应<value>。

提示 2:在 Windows 10 上测试了系统的环境变量,但是不生效,所以,只能通过 -D 传递。

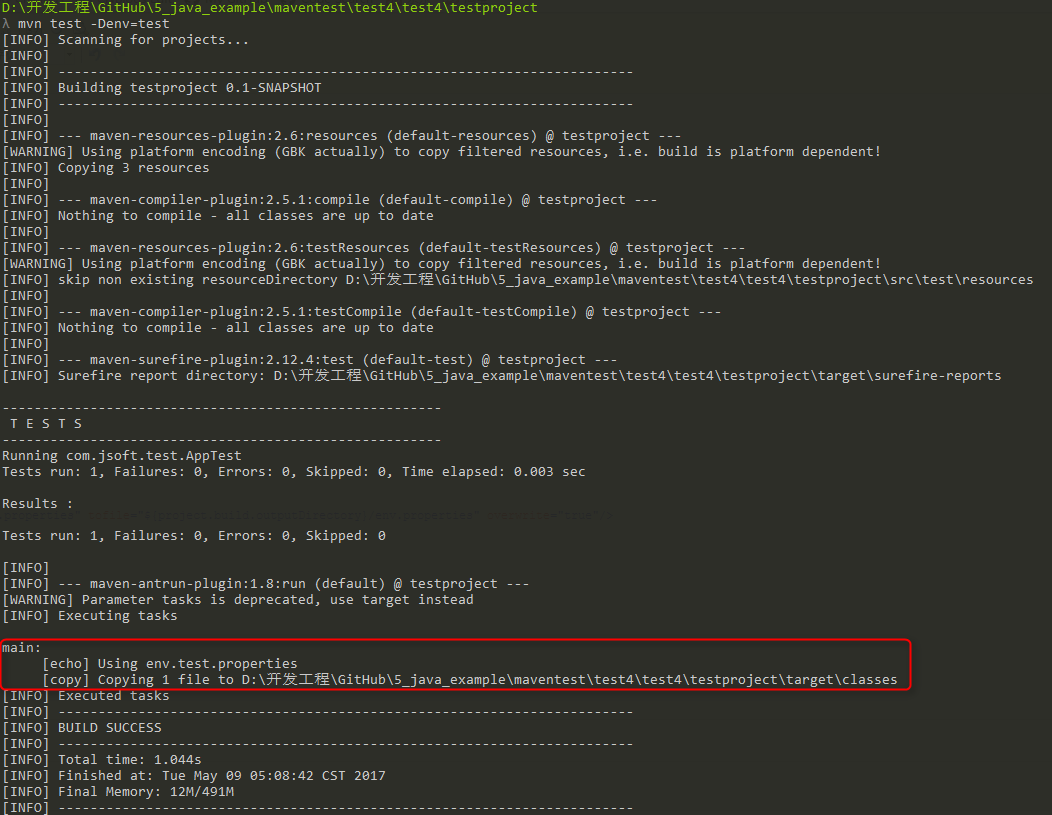

执行结果:

4、通过操作系统激活配置文件

activation 元素包含下面的操作系统信息。当系统为 windows XP 时,test Profile 将会被触发。

<profile>
   <id>test</id>
   <activation>
      <os>
         <name>Windows XP</name>
         <family>Windows</family>
         <arch>x86</arch>
         <version>5.1.2600</version>
      </os>
   </activation>
</profile>

现在打开命令控制台,跳转到 pom.xml 所在目录,并执行下面的 mvn 命令。不要使用 -P 选项指定 Profile 的名称。Maven 将显示被激活的 test Profile 的结果。

mvn test

5、通过文件的存在或者缺失激活配置文件

现在使用 activation 元素包含下面的操作系统信息。当 target/generated-sources/axistools/wsdl2java/com/companyname/group 缺失时,test Profile 将会被触发。

<profile>
   <id>test</id>
   <activation>
      <file>
         <missing>target/generated-sources/axistools/wsdl2java/
         com/companyname/group</missing>
      </file>
   </activation>
</profile>

现在打开命令控制台,跳转到 pom.xml 所在目录,并执行下面的 mvn 命令。不要使用 -P 选项指定 Profile 的名称。Maven 将显示被激活的 test Profile 的结果。

mvn test

参考:https://www.cnblogs.com/EasonJim/p/6828743.html
